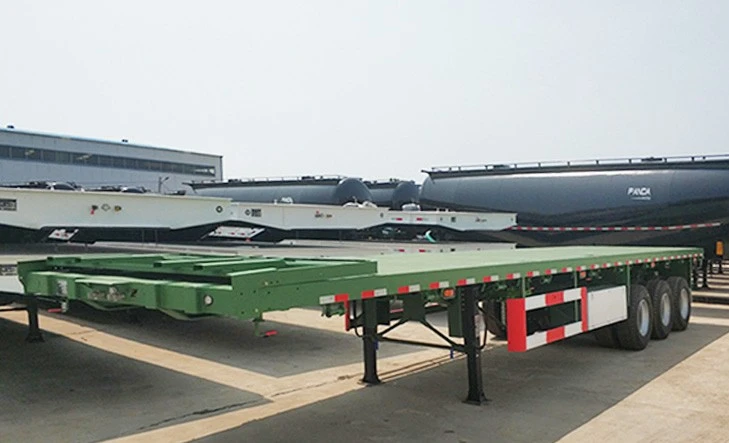

TONGYA 40ft Container Flatbed Semi Trailer With Durable Quality
TONGYA 40ft container flatbed semi trailer is used for loading container or dry cargos.Main beams welded by advanced large-scale special welding machines automatically.TONGYA brand and CCC/ISO9001 certificates approved.We adopt famous brand parts for our trailers, ensuring good characters.We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.
product Introductie
TONGYA 40ft container flatbed semi trailer with durable quality
Our TONGYA 40ft container flatbed semi trailer: We transport the semi trailers by bulk, container or RORO. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee. Also We are direct manufacturer and we have strong producing capacity and R&D capacity! Our raw material and OEM parts including axle, suspension, tire, are purchased centralized by Tongya group, every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality. Our company integrated research and development, high quality control and professional sales teams, all those advantages can provide full service of trailers, semi-trailers, trucks and spare parts. Factory price, very competitive in the market, professional after-sales team solve your after sales problem within 3 working days to 5 working days, and all spare parts are available for you.
|
40ft container flatbed semi trailer |
|
|
12,500mm*2,500mm*1,550mm |
|
|
7,200kgs |
|
|
45,000kgs, we can also design as per your requirements |
|
|
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 16mm, width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 16mm, width 140mm |
|
|
Tongya brand, 13T/axle |
|
|
3 axles |
|
|
3mm diamond steel plate |
|
|
JOST brand 2" Bolt-in King Pin |
|
|
JOST brand Two-speed, manual operating, heavy duty landing gear |
|
|
9.0-22.5, 13 pieces |
|
|
12R22.5, 13 pieces |
|
|
2 units |
|
|
12 units |
|
|
WABCO RE 6 relay valve; T30/30+T30 Spring braking chambers; two pieces of 45L air tanks |
|
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
|
One standard tool box (Size can be chosen freely)(equipped with 1 unit tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
